E1 interfaces
- Quantity: 1 RJ-45
- Standards: G.703, G.704, G.706, G.823
- Interface: symmetric 120 Ohm, HDB3/AMI
- Synchronisation: inner, incoming Đ1 stream synchronisation
- Link distance: 500 m
TDM over Packet Network (Ethernet/IP)
- TDMoP, SAToP, CESoPSN
- ransmission delay: 1-2000 ms
- 1+1 redundancy
Ethernet interfaces
- Quantity: 1 RJ-45, 1 SFP
- Type 10/100/1000 Mbps Auto MDI/MDI-X RJ-45
- Type IEEE 802.3 1000Base-X
- Support for IEEE 802.3, 802.3u, 10Base-T, 100Base-TX, 1000Base-TX standards
Management means
- Telnet CLI, menu
- SSH
- Web interface
- SNMP v1, v2c, v3
- RADIUS, TACACS+ authentication
Parameters
- MAC table: 8192 entries
- Embedded switch bandwidth: up to 2 Gbps, 2.98 Mpps;
- Maximum frame size: 10240 bytes
Capabilities
- 4 priority queues 802.1p
- QoS based on: switch port, VLAN, DSCP, source/destination MAC address
- VLAN: IEEE 802.1Q standard, values range from 0 to 4095, Q-in-Q – double tagging
- IGMP Snooping
- MVR (Multicast VLAN Registration)
- Local traffic mirroring
- Support for NAT for E1 transmission
- PIRL â Port Ingress Rate Limit â bandwidth limiting for incoming traffic per ports
- FlowControl
- SAFilter â MAC address filtering
- Scheduling â frames output planning
- DyingGasp â message sending to syslog server in case of powerdown or reload
Dimensions
- Dimensions (WxHxD, mm): 82Ń 26Ń 85.5, 19″ formfactor
- Weight 0.25 kg

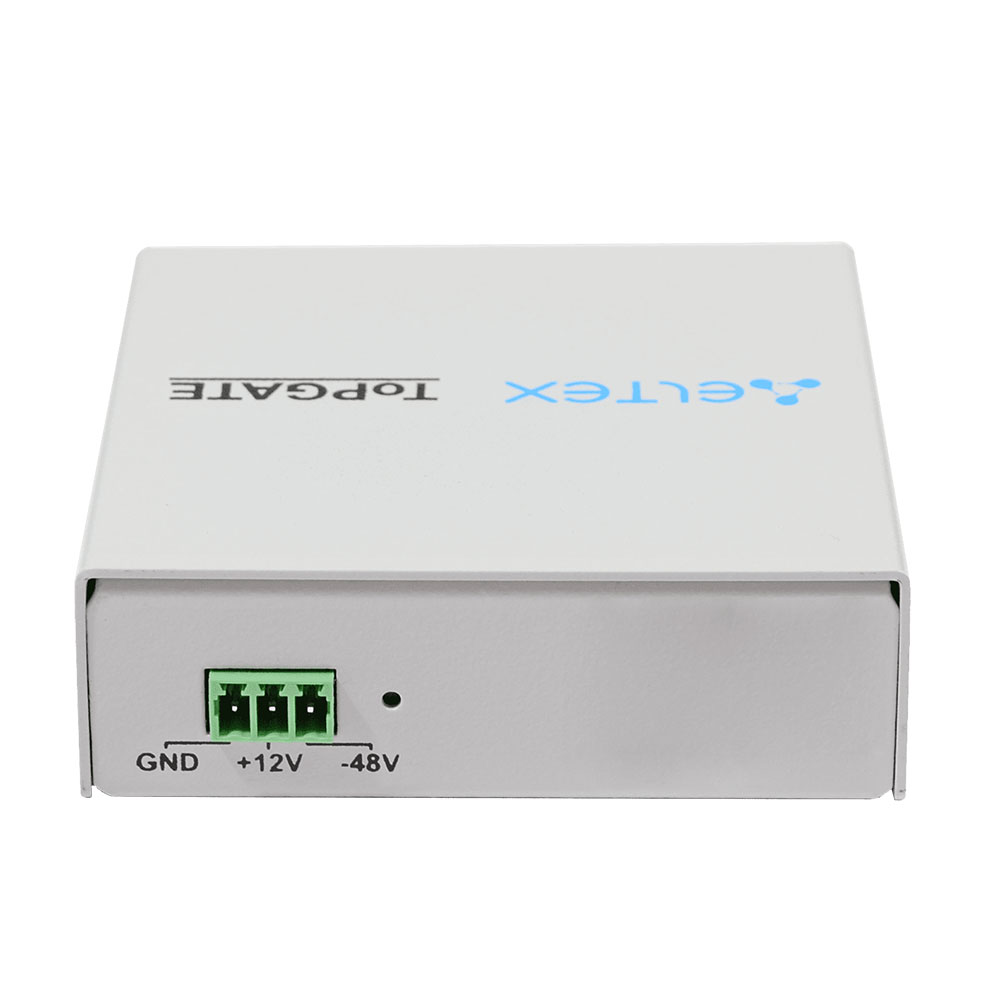

Power supply
- 220 VAC, 12 VDC (the convector ~220V into 12V is in the package)
- Maximum power consumption 6W
